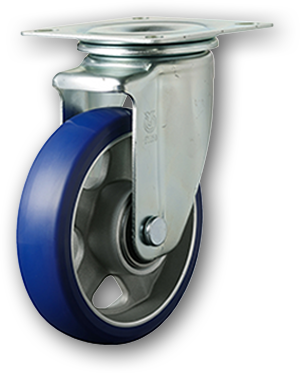

Premium PU Caster
Perfect Turning Performance
Premium PU
KAIZEN!
-
Efficient transportation.
-
Improve workability.
*1
Two swivel casters and two fixed casters are attached to the trolley, and the maximum pulling force at the time of 1102 lbs loading is measured seven times.
The Values from internally test: averaging five data with the maximum and minimum values removed.
Test condition: Set the 2 swivel casters in the forward direction at 90 degrees to the direction of travel and pull on a flat concrete finish road to measure the starting force.
Premium PU PMS Type
Assists reduction of labor cost and work burden!
-
Reduce work burden
-
Comfortable by little noise
-
Reduce running cost
2 types available by usage
Type Emphasis on Turnability PMS-150APU (E46)
Turnability
According to turnability test, PMS-150APU(E46) realized under 20% starting load. (Compared with normal industrial caster wheel) With improving the initial operation that feels the heaviest, it also achieves smooth turning performance.
Reduce load
80%
Compared with
equivalent
(300daN)

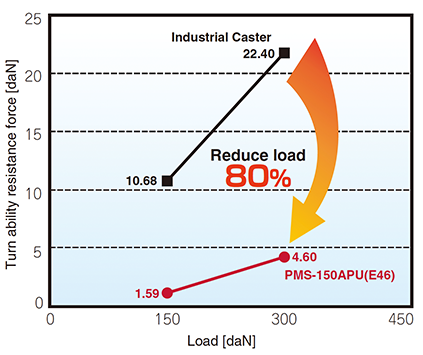

Turn ability test result (JIS B 8920 Turn ability test)

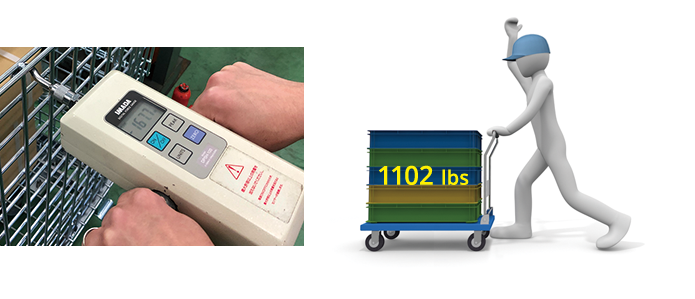

Pushable 1102 lbs trolley by one hand!
Pushable with 37 lbs power, you can move heavy trolly easily!
Type Emphasis on Turnability PMS-150APU (E46)
Load capacity

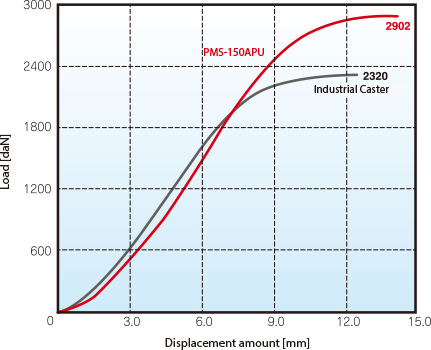

According to compression test, Maximum load capacity of PMS-150APU is 2,902daN. It has 125% load capacity compared with equivalent (2,320daN). It has ample load capacity performance for heavy loads.
Load capacity
125%
Compared with equivalent
Lineups of Premium PU with PMS Type
-
Swivel
-
Swivel with Brake
-
Fixed
-
Fixed with Brake
Premium PU SKY-2type
Assists reduction of labor cost and work burden!
*2
Two swivel casters and two fixed casters are attached to the trolley, and the maximum pulling force at the time of 1102 lbs loading is measured seven times.
The Values from internally test: averaging five data with the maximum and minimum values removed.
Test condition: Set the 2 swivel casters in the forward direction at 90 degrees to the direction of travel and pull on a flat concrete finish road to measure the starting force.
-
Protect your goods from vibrations and shocks
-
Reduce work burden
-
Reduce running cost
-
Comfortable by little noise
Turnability
Premium PU is adopted to SKY-2 type.Low frictional resistance, reduced more than half the burden when caster starts to move. Reduce the burden on workers and it's also effective for improving efficiency. (KAIZEN)
Reduce less than
50%
Compared with equivalent

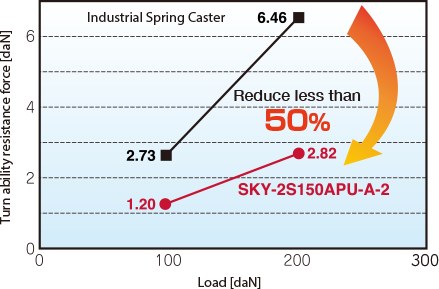

Turn ability test result (JIS B 8920 Turn ability test)

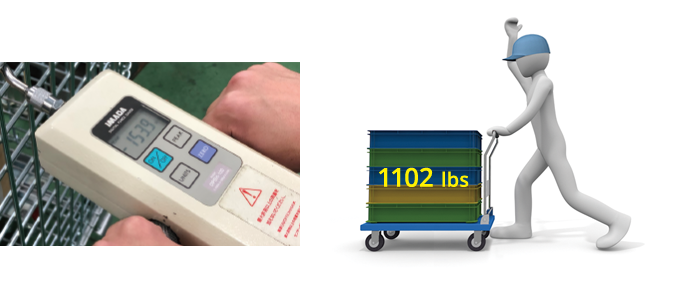

Pushable 1102 lbs trolley by one hand!
Pushable with 33 lbs power, you can move heavy trolly easily!
Shock absorbing
"Shock absorbing springs" reduce the impact transmitted from uneven road surfaces to approximately 20% of conventional damage to goods.
Reduced
80%
shock
Compared with equivalent
Shock Acceleration test
SKY-2 type Plus 1 feature
Shock Absorbing Spring
By the built-in "Shock Absorbing Spring", load and wearing to wheel is reduced and realized long life.
Depending on the usage environment but, the ware is reduced to 50% to 25% compared to the conventional wheel without spring.
2 springs available from usage
Shock absorption range of spring
- Load mark
- -1
- -2
- Color of Spring
- Blue
- Red
- Standard Load
- 225 lbs
- 450 lbs
We have 2 springs lineup to deal with various load weight. You are possible to choose suitable spring from your goods weight.
Lineups of Premium PU with SKY-2 Type
-
Swivel
-
Fixed
Product image for illustration purposes only. Actual product may vary.
Lineups of SKY type
-
"Cushion Caster for Towing" absorbs shock and vibration
SKY-2 Type
-
"Anti-Static Caster" protecting electrical equipment and medical equipment from static electricity
Anti-Static Caster
